MiniPC Minis Forum X1-255 AMD Ryzen 7 H255, barebone

Minis Forum X1-255 AMD Ryzen 7 H255 miniPC, barebone

Minis Forum X1-255 is a high-performance PC that is suitable for both office work and more demanding tasks. Equipped with a powerful AMD Ryzen™ 7 processor and a variety of connectors, it allows you to freely customize your configuration. Thanks to its compact dimensions (128 x 126.5 x 52.5 mm), it will fit virtually anywhere - on a desk, behind a monitor or in a workspace with limited space.

Powerful AMD Zen 4-series processor

At the heart of the device is an 8-core and 16-thread AMD Ryzen™ 7 255 processor, based on the Zen 4 architecture. A base clock speed of 3.8 GHz with the ability to accelerate to 4.9 GHz ensures smooth operation in office applications, browsers, and even lighter 3D modeling or video editing.

Built-in AMD Radeon™ 780M graphics

The integrated AMD Radeon™ 780M graphics chip allows for smooth high-definition multimedia and even simple graphics processing. It s a reasonable choice for users who don t need a dedicated graphics card, but still expect smooth image handling.

Flexible memory and disk configuration

The X1-255 supports up to 64 GB of DDR5 memory clocked at 5600 MT/s for fast application loading and seamless multitasking. Two M.2 NVMe SSD (PCIe 4.0) slots support the installation of drives up to 4TB each, allowing you to build ultra-fast and high-capacity storage without external solutions.

Efficient cooling and quiet operation

A turbo fan with a speed of up to 4,000 rpm and a variable-phase material is responsible for cooling. This system effectively maintains a low temperature even under full load, while remaining quiet - in Silent mode it generates just 38 dB.

Reliable connectivity

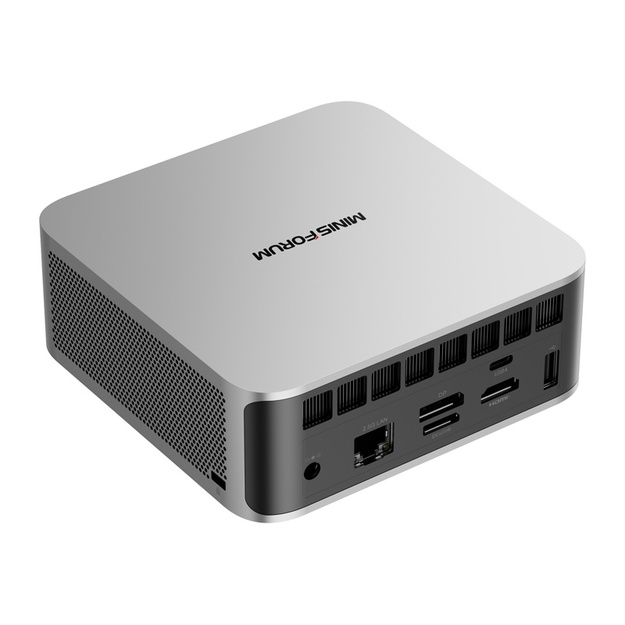

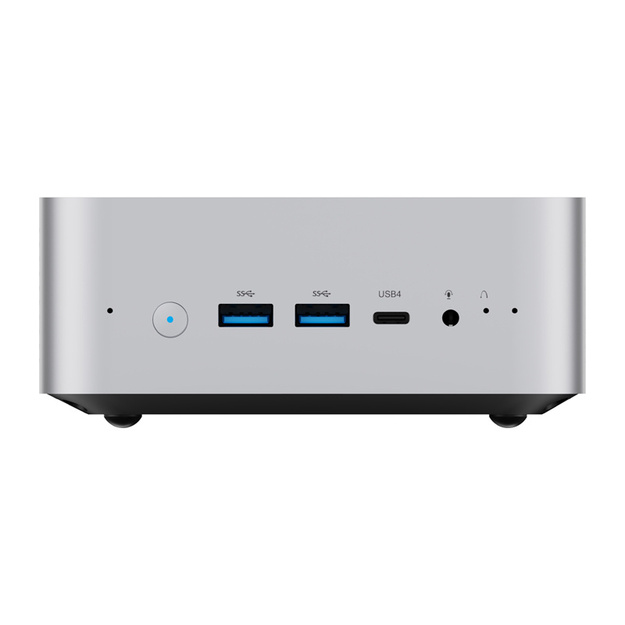

The MiniPC offers a wide selection of ports, including USB4, HDMI 2.1 FRL, DisplayPort, OCuLink, as well as a 2.5G LAN connector. This makes it easy to connect a 4K/8K monitor, high-speed external drive or other accessories. The computer also supports Wi-Fi 7 and Bluetooth 5.4 for stable wireless connectivity.

With convenience and installation in mind

The unit comes with a standard VESA mounting hole for easy installation on the back of a monitor, for example. You ll also find a power button, a Kensington Lock slot for theft protection and a dedicated reset hole.

Included

• mini PC
• power adapter
• power cable
• HDMI cable
• mounting screws x4
• M.2 to OCulink adapter card
• mini PC stand
• user manual
