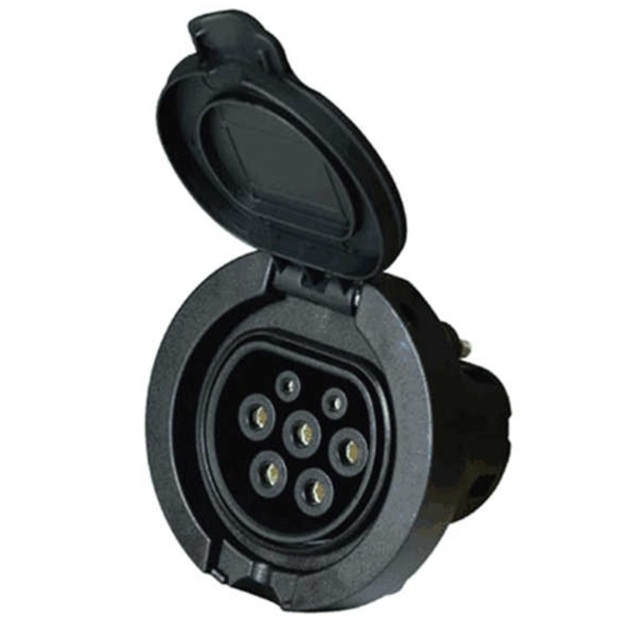

EV Charging Stasion Socket Duosida, Type 2 (Female), 32A, 3-fazė

Electric vehicle charging station socket (charger side), Type 2 (Female), 32A, 3-phase, without cable.
            Features:

• Type 2 electric vehicle charging socket (62196-2).
• The socket has a protective cover, is compact and easy to install with 4 fixed points, screw method.
• Antiflaming, pressure-resistant, abrasion resistant and impact resistant.
• Charging capacity up to 22 kW.
• Operating temperature -30° to +50°C. Current 32A/415V.
• Contacts: copper alloy, silver plating.
  Specifications:
• Connector type: IEC 62196, Type2 (European), Mennekes, 7 contacts.
• Rated current: 32A.
• Operating voltage: 415V AC.
• Cable specification: 3x6mm²+2x0.75mm² (single phase) 5x6mm²+ 2x0.75mm² (three phase).
• Operating temperature: -30°C to +50°C.
• Material: thermoplastic, flame retardant grade UL94 V-0.
• Certificates: CE, TUV.
• Colour: black.
  Warranty: 24 months.
