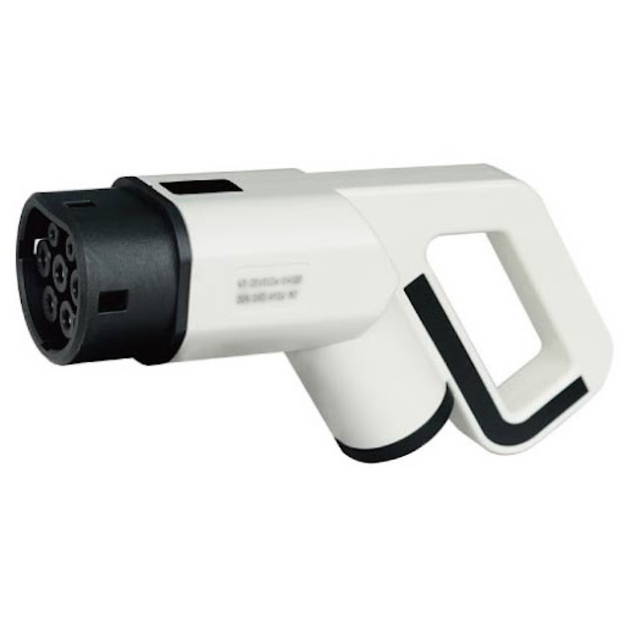

Electric Car Plug Duosida, Type 2 (Female), 63A, 3-phase

Plug for electric car Type2, 32A (Female plug-Car side).The electric car plug is designed to create a custom EV charger by selecting the desired cable length and connectors.
Specifications:

• Plug type: IEC 62196, Type2 (European), Mennekes, 7 pins.
• Rated current: 63A.
• Rated voltage: 415V AC.
• Maximum charging power: 22 kW.
• Material: thermoplastic, flame retardant grade UL94 V-0.
• Contacts: copper alloy, silver plating.
• Cable specification: 5x16mm²+ 5x0.75mm² (three phase).
• Number of contacts: 7 pins.
• Safety class: IP55.
• Operating temperature -30° to +50°C.
• Certificates: CE, TUV.
• Color: black / white.

Warranty: 24 months.
