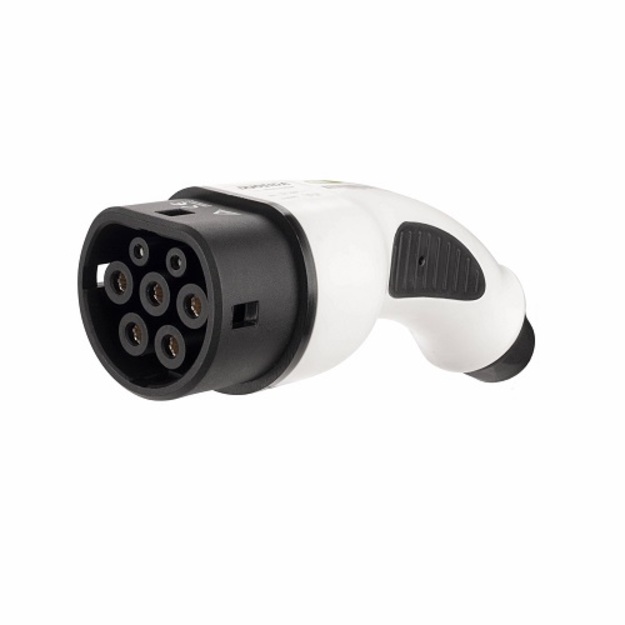

Electric Car Plug Duosida Type 2 (Female), 32A, 3-phase

Plug for electric car Type2, 32A (Female plug - Car side). The electric car plug is designed to create a custom EV charger by selecting the desired cable length and connectors.

 Specifications:

Plug type: IEC 62196, Type2 (European), Mennekes, 7 pins.

Rated current: 32A.

Rated voltage: 415V AC.

Maximum charging power: 22 kW.

Material: thermoplastic, flame retardant grade UL94 V-0.

Contacts: copper alloy, silver plating.

Cable specification: 5x6mm²+ 1x0.75mm² (three phase).

Number of contacts: 7 pins.

Safety class: IP44.

Operating temperature -30° to +50°C.

Certificates: CE, TUV.

Color: black / white.

 Warranty: 24 months.
