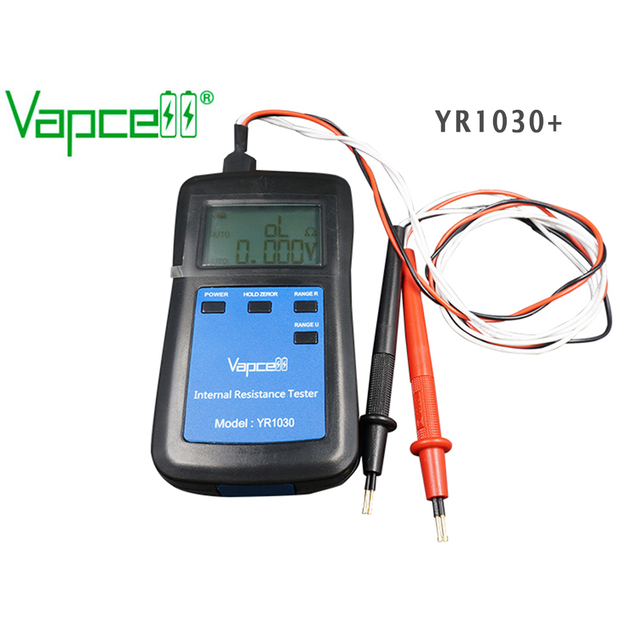

YR-1030 professional internal resistance tester for batteries up to 28V

New
Add to wish list

Product code: 6934917092787

Available quantity 1-3 working days

€5977 inc VAT
Have any questions about this item? Ask
  • The YR1030 is a precision measuring device for measuring the voltage and internal resistance of lithium (Li-ion, LiFePO4, LiMn, LiPo), NiMH and NiCd and lead batteries as single cells or battery packs up to 28 V. Internal resistance measurement and long-term monitoring allow you to conveniently check the quality of new batteries and easily document aging during long-term use. With the battery tester, you can check newly delivered batteries and sort out batteries of lower quality.
  • Battery from the tester YR-1030
  • Internal resistance measurement helps when connecting batteries or connecting batteries for use in parallel or series. Counterfeit batteries can often be recognized by the highest internal resistance. Measurements are fast and, most importantly, reproducible.
  • Suitable battery holder: BF-1L
  • YR-1030 battery tester features:
  • Individual players in each of their own measurements, including sorting function and three serial test groups, with adjustable sorting criteria, counting function
  • 4-wire measurement with replaceable measuring sensors (connected via USB plug) and spring-loaded test tips, replacement tips included. Optional round cell clock
  • 3 selectable measuring ranges for voltage and auto-detection, six measuring ranges for resistance measurement + automatic
  • Integrated battery, rechargeable via micro-USB cable (not included)
  • Backlit display, adjustable automatic switch-off and screen dimming
  • English menu navigation
  • Calibrated
  • Suitable battery holder USB battery holder BF-1L 100MHz up to 5A (not included)
  • Scope of delivery:
  • Battery tester YR-1030 with built-in battery
  • 1 set of measuring sensors 4 wire measurements, including replacement tips
  • Test zone voltage 0 V - 1,999 V / 2 - 19.99 V / 20 V - 28 V / Automatic
  • Resolution voltage 1mV/10mV/100mV
  • Test zone resistance 0-20mΩ/20-200mΩ/200-2Ω/2-20Ω/20-200Ω/Automatic
  • Resistance resolution 0.1 mΩ / 1 mΩ / 10 mΩ
  • Temperature –10°C and 40°C
  • Power Built-in battery, rechargeable via Micro-USB 5V, 1A
  • Language English
  • Dimensions 130mm x 72mm x 30mm
  • Weight 200g
