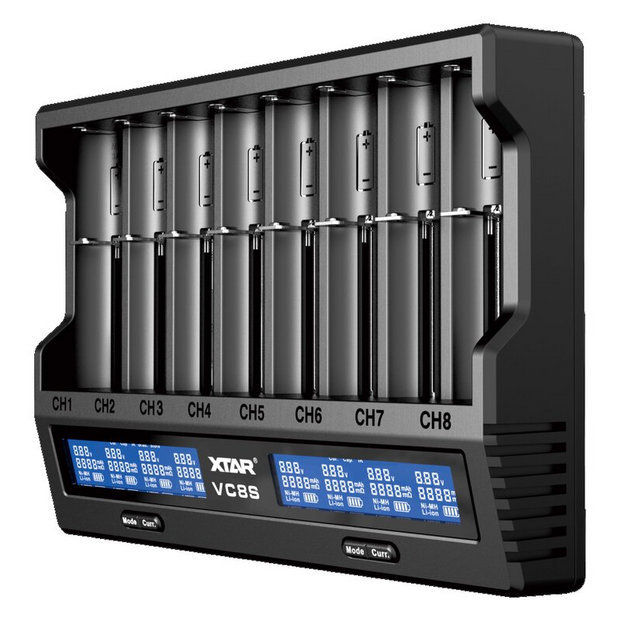

Xtar VC8S Li-ion and NiMH cylindrical battery charger

• universal processor charger for NiMH and Li-ion batteries in sizes AA, AAA, SC, C, 10440, 14500, 14650, 16340, 17500, 17670, 18350, 18500, 18650, 18700, 20700, 21700, 22650, 25500, 26650
• three-stage charging method Li-ion TC /CC / CV
• 0ΔV and -ΔV charging method
• eight independent charging channels
• Lcd
• reactivation of deeply discharged cells and 0V cells
• measurement of cell capacitance and internal resistance
• charging current: 2x3A / 4x 2A / 8x1A / 8x0,5A / 8x0,25A
• powered by USB TYPE C - no power supply included
• Protection:  short-circuit, against reverse insertion of the battery

Key features:

• charging Li-ion batteries with a three-stage processor-controlled TC/CC/CV charging process
• charging Ni-MH batteries using 0ΔV and -ΔV methods
• eight independent charging channels
• adjustable charging current
• LCD display informing about cell voltage and charging current as well as internal resistance
• Measurement of capacitance (from discharge)
• Storage mode - for storing batteries
• Deeply discharged cell reactivation function
• Protection: short-circuit, against reverse battery insertion, against overcharging, against using too high charging current

The VC8S is an upgrade to the reputable and popular VC8.  VC8S is a charger with a three-stage charging process TC/CC/CV for Li-ion cells and 0ΔV and -ΔV for Ni-MH batteries. It charges 1-8 Li-ion 3.6 / 3.7V and Ni-MH cells of any capacity in sizes AAA/R03, AA/R6, 10440, 14500, 14650, 16340, 17500, 17670, 18350, 18500, 18650, 18700,18700, 20700, 21700 - also with protection, 22650, 25500, 26650. In the two extreme channels it is possible to charge batteries with low internal resistance even with a current of 3A (only 2 cell).

The Xtar VC8S charger has the function of reactivation of deeply discharged cells and cells with a voltage of 0V. Many chargers on the market are not able to charge such batteries. This is where the Xtar VC8S charger comes in handy, which in many cases allows you to rescue such cells. Simply insert a deeply discharged battery into the VC8S charger, just like normal charging - the charger will detect a discharged cell and attempt to reactivate it.

Remark! Cells discharged below a certain level are irreversibly damaged and may not be able to reactivate. Avoid too deep discharge of Li-ion and Ni-MH batteries - this can lead to a significant reduction in their durability and capacity or lead to their complete malfunction.
