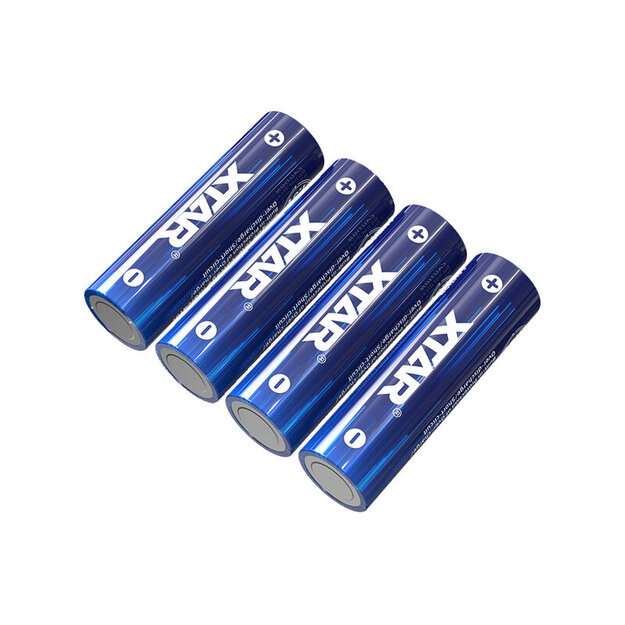

Xtar R6 / AA 1.5V Li-ion 2500mAh battery with protection

The XTAR rechargeable 1.5V AA cell is suitable for use in appliances as a replacement for any disposable AA cells.

Unlike traditional Ni-MH rechargeable cells (which have a nominal voltage of 1.2V and some device manufacturers recommend using Ni-MH rechargeable cells due to the voltage being too low), the use of this Xtar 1.5V cell is unlimited and can be used anywhere disposable AA cells.

Due to the Li-ion cell used in the cell and the voltage controller, the cell voltage remains at 1.5V (the voltage of single-use AA cells gradually decreases from ~1.65V to ~0.9V as they wear out). For this reason, when using an Xtar 1.5V AA battery, the devices will work in the same mode (for example, the flashlight will shine at the same brightness) until the battery is fully discharged.

When the cell is almost discharged, the voltage is reduced to 1.1V - thus preventing unexpected stoppage of the device and, if the device in use has such a possibility, causes an indication of the discharged cell.

Also, thanks to the Li-ion technology, this cell has a high number of charging cycles, does not have a memory effect (it is not harmed by charging even when fully discharged) and is able to deliver a higher current than standard disposable or rechargeable Ni-MH cells.

• Nominal voltage: 1.5V
• Nominal capacity: 2500mAh (4150mWh)
• Minimum capacity: 2400mAh
• Weight: 19g
• Dimensions: 14.5 x 50mm
• Maximum continuous discharge current: 2A
• Maximum charging current: 0.45A
• PCB controller protects against short circuit, over discharge voltage or over charge
• More than 1000 charging cycles
• Automatic voltage reduction to 1.1V when the cell is almost discharged
• Suitable working ambient temperature from -20 to +60°C
• A green charge level indicator is installed
• Packed in a reusable box

IMPORTANT!

• Standard Ni-MH cell chargers or standard Li-ion 3.6/3.7V chargers are not suitable for charging this cell.
• Use dedicated 1.5V Li-ion chargers (such as Xtar ET4S, L4, BC4 or BC8) to charge the Xtar 1.5V AA cell.
