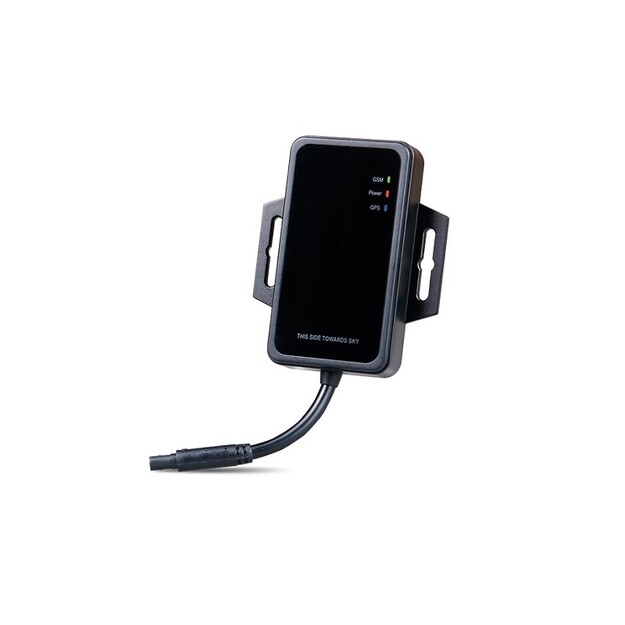

Vehicle GPS Tracking Device VG01U

Vehicle GPS Tracking Device VG01U.

Features:

A compact GPS tracker that integrates INS (Inertial Navigation System) for fast and stable location and positioning in poor GPS signal area, such as underpass, city center, tunnel, etc.

Its integrated algorithm allows managers or insurance providers to capture and analyze detailed driver behavior.

VG01U has 8 types of professional driver behavior analysis: sudden acceleration warning, sudden braking warning, sudden turning warning, severe lane change warning, accident warning warning, rolling warning, vehicle skidding warning, vehicle corner abnormal tilt warning.

Technical data:

• GSM
• GSM frequency: 850/900/1800/1900MHz.
• GPRS: Class 12, TCP/IP.
• Chipset: GPS+INS.
• Frequency: L1.
• Memory: 32+32Mb.
• Positioning accuracy: <2.5m CEP.
• Location detection: <10 meters.
• Tracking sensitivity: -162dBm.
• Minimum signal level required for set point during cold start: -148dBm.
• Time to receive first coordinate (TTFF):
• Coordinate acquisition time when time and last location coordinate are known (hot start) <1 sec.
• Coordinate acquisition time when initial coordinate and time are not known (cold start) <32 sec.
• Other technical data:
• Battery: 270 mAh / 3.7 V industrial grade lithium polymer battery.
• Operating voltage / current: 9-36V DC / 38mA (12V DC).
• Standby time: 28 hours.
• Working time: 1.5 hours.
• LED: GPS (blue), GSM (green), power (red).
• Integrated GPS ceramic antenna four-frequency GSM antenna.
• Operating temperature: from -20°C to +70°C.
• Sensor: accelerometer, gyroscope.
• Size: 80 x 67 x 16mm.
• Weight: 63g.
• Safety class: IP65.
• Driving behavior analysis: sudden acceleration, sudden braking, sudden turn, sudden lane change, collision, skidding, overturning.
• Scenarios: vibration warning, vehicle movement warning, overspeed warning, geo-fence, SOS call, power cut.
